Product Overview
Expandable Polystyrene
Expandable Polystyrene EPS is polystyrene containing a blowing agent (Pentane) and comes in the form of beads. It has thermal insulating, impact resistance and good processability, making it widely used in thermal insulation, packing materials, and miscellaneous special applications. In addition to the general EPS grade — used for insulation blocks & panels, packaging, drinking cups, food boxes, pipe insulations, ice boxes, and shock absorbers — we also produce a Flame Retardant (FR) grade specifically for the insulation industry.
Thermal Insulation
Impact Resistant
Lightweight Beads
Flame Retardant Grade
Food Safe
6 Bead Sizes
Applications

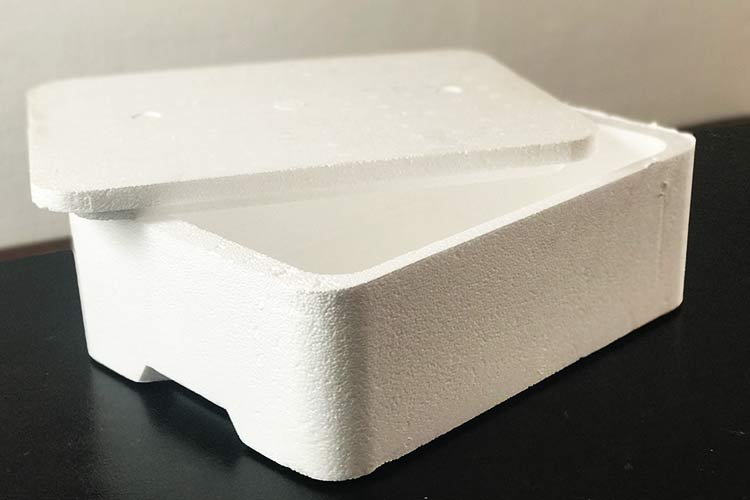

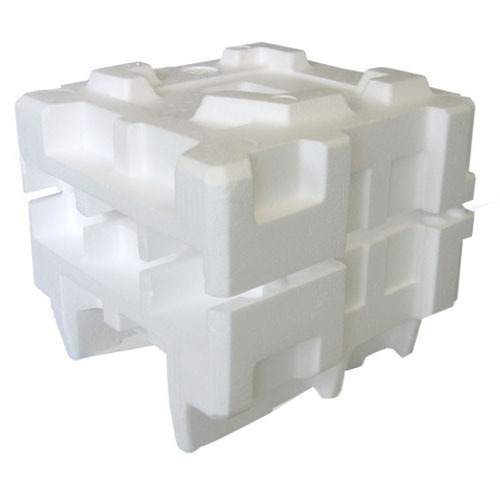

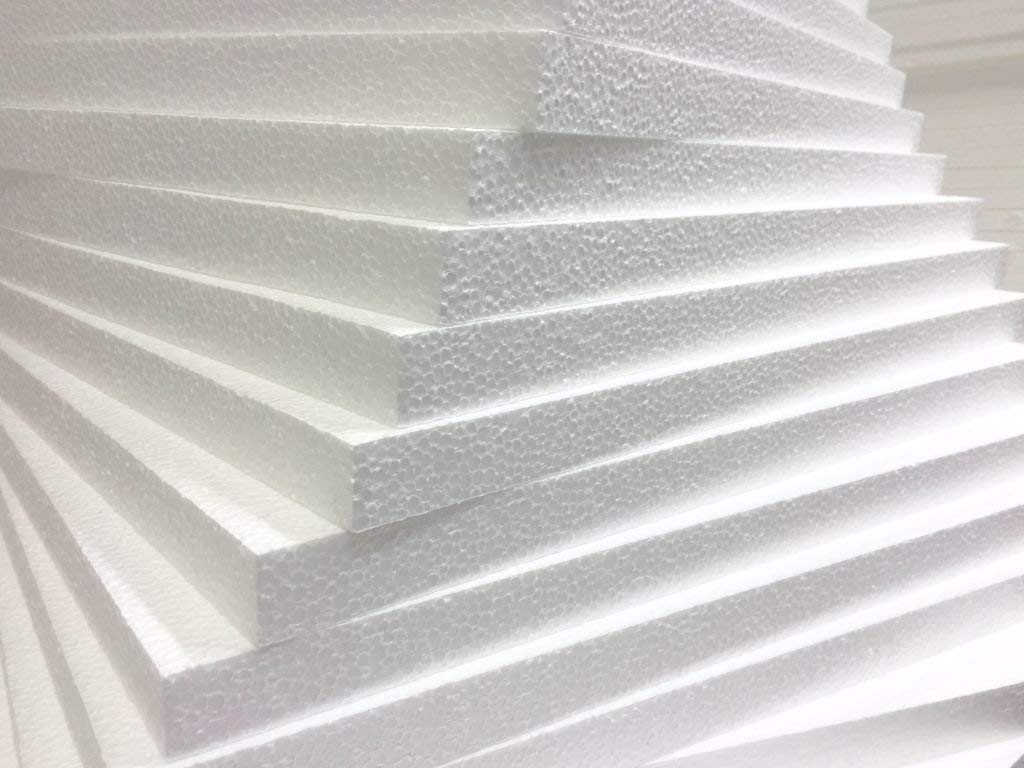

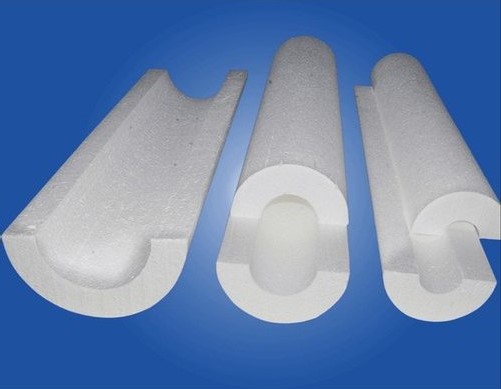

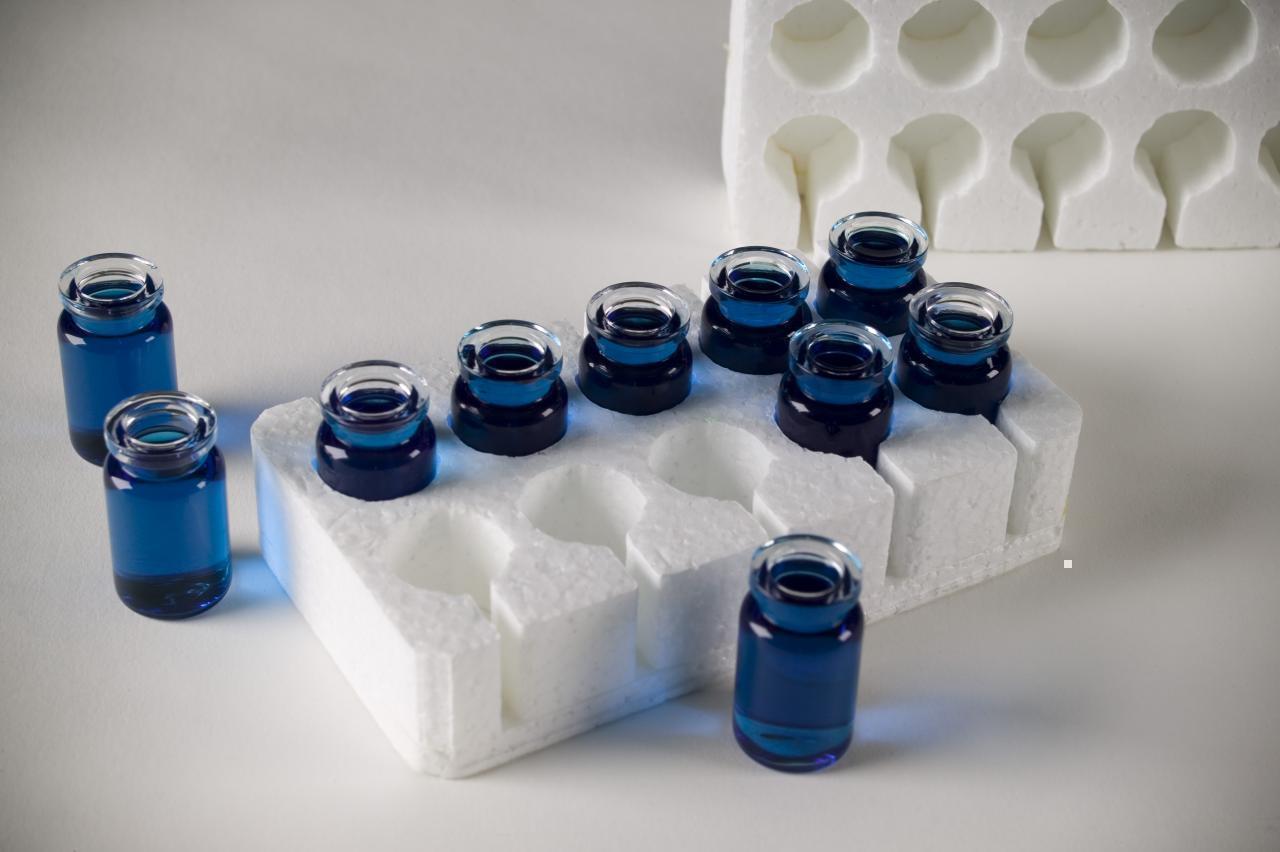

Major Applications
Technical Data
EPS Bead Specifications
| EPS — Specification | |||||||
|---|---|---|---|---|---|---|---|
| Property | XL | L | M | MS | S | SS | |
| EP-100 / EP-100 (L.D) / EP-300 (FR) | |||||||
| Appearance Bead Sizes (mm) |
|||||||
| 1.4 – 2.4 | 1.19 – 2.0 | 1.0 – 1.66 | 0.84 – 1.41 | 0.71 – 1.00 | 0.5 – 0.84 | ||
| Spheres Like Pearl Density Range (g/l) |
|||||||
| 11 – 14 | 11.5 – 15 | 12 – 16 | 12.5 – 18 | 13 – 20 | 14 – 22 | ||
| Moisture Content / Absorption % | |||||||
| 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | ||
| Specific Gravity at 23/23 ℃ | |||||||
| 1.03 | 1.03 | 1.03 | 1.03 | 1.03 | 1.03 | ||
Grade Guide
Grades, Characteristics & Applications
| Grade | Characteristics | Applications |
|---|---|---|
| EP-100 / EP-100 (L.D) | Sphere like pearl, low volatility, no hard core, antistatic, good fusion & preform grade | Insulation blocks, large articles, fish boxes, fruits & vegetables boxes, pallets, packaging items, furniture and decorative items |
| EP-300 (FR) | Sphere like pearl, good shock absorbency, low volatility, no hard core, antistatic, good fusion & preform grade, flame retardant | Insulation blocks, insulation sheets for construction sectors, packaging items |
Downloads
Product Datasheets
Download the complete technical datasheet for each EPS grade (PDF).
